TYPE：BSW-880V Vertical Airflow Bench |
|
| |
| |
General Description |
| |
This is a local clean bench with dustfree & germfree. It can be used widely in Medical & Health, Pharmacy and Chemical Laboratory fields. |
|
|
| |
Product Feature |
| |
1、Vertical Airflow & Close Table for preventing the working area from outside flow incursion and the operator from peculiar smell inroads.
|
|
| 2、Make use of adjustable fan unit system, Touching switchgear, adjustable voltage, keep the wind speed of working area always in perfect status. |
| 3、The operator can work in two sides for agility and convenience. Material of work surface is s.s. |
|
| |
Photo |
|
| |
Main Specification |
| |
Model |
|
Cleanliness |
100 class @ ≥ 0.5 μ m (FS 209E) |
Colony number |
≤ 0.5 / culture container (Φ90mm) |
Mean flow rate (m/s) |
0.3--0.6 (Adjustable) |
Noise
dB(A)
|
≤ 65 |
Vibration/half peak (μm) |
≤ 5 |
Iiiumination (LUX) |
≥300 |
Power Supply |
AC 220V/50Hz |
MAX. consumption(VA) |
400 |
Weight(Kg) |
150 |
Internel Dimension (mm) |
880×700×520 |
Outline Dimension (mm) |
1040×700×1630 |
Size & No. of HEPA(mm) |
820×610×① |
| Size & No. of Light/UV Lamp |
20W×①/20W×① |
| Person capacity |
single |
double |
|
|
|
| |
Note: Thick of falter can be selected 50 or 69mm. |
|
|
| |

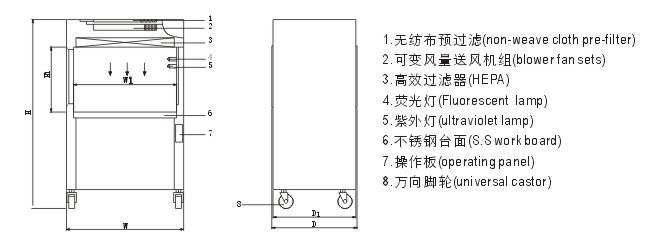

Strucure Sketch |
|
| |
|
| |
|
|
| |
|
|
|
|
|
| |
ISO9001：2000. CCC. CE CERTIFIED AND MD REGISTERED |
===================================================================================================================================== |
| |
